CADdoctor is the ultimate desktop application for 3D data translation among multiple CAD formats, PDQ validation, repair and transformation. It also simplifies the geometry, reduces the data size and generates mid-surfaces for efficient and accurate CAE analysis.
Submit form to access tutorials on the following CADdoctor operations:
Gap-Filling
It is essential to fill gaps between parts to create a single solid model out of complex assembly models. CADdoctor automatically detects and fills gaps between parts - even tiny gaps which cannot be detected by the human eye - by either creating a new solid body or changing the shape of adjacent parts, while minimizing the geoometric modification. It also provides an easy-to-use editing tool to fill complex gaps manually.
Solid Envelope Creation
There are two major use cases for the Solid Envelope Creation: Protection of Intellectual Property and Reduction of data size. The requirements for the envelope are Geometry Accuracy and to the original model and significant reduction of model size in terms of entity county and file size CADdoctor can perform these requirements on very large assemblies with complex geometry.

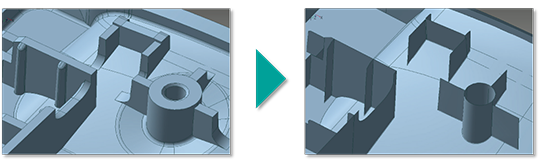

Mid-Surface Generation
